Stainless steel deflector anvil spraying nozzles tip, size 3 nozzle. You are buying (1) nozzle in this sale. They are top quality and can be used in lots of industry's. To name a few Herbicide spraying - carpet cleaning - line marking (sports pitches) These nozzles can stand some pressure and last so much longer then plastic nozzles.
Capacity litre per min
0.4 bar= 0.86L/Min,
0.5 bar= 0.97L/Min,
0.7 bar= 1.1L/Min,
1.0 bar= 1.4L/Min,
1.5 bar= 1.7L/Min,
2 bar= 1.9L/Min,
3 bar= 2.4L/Min,
4 bar= 2.7L/Min,

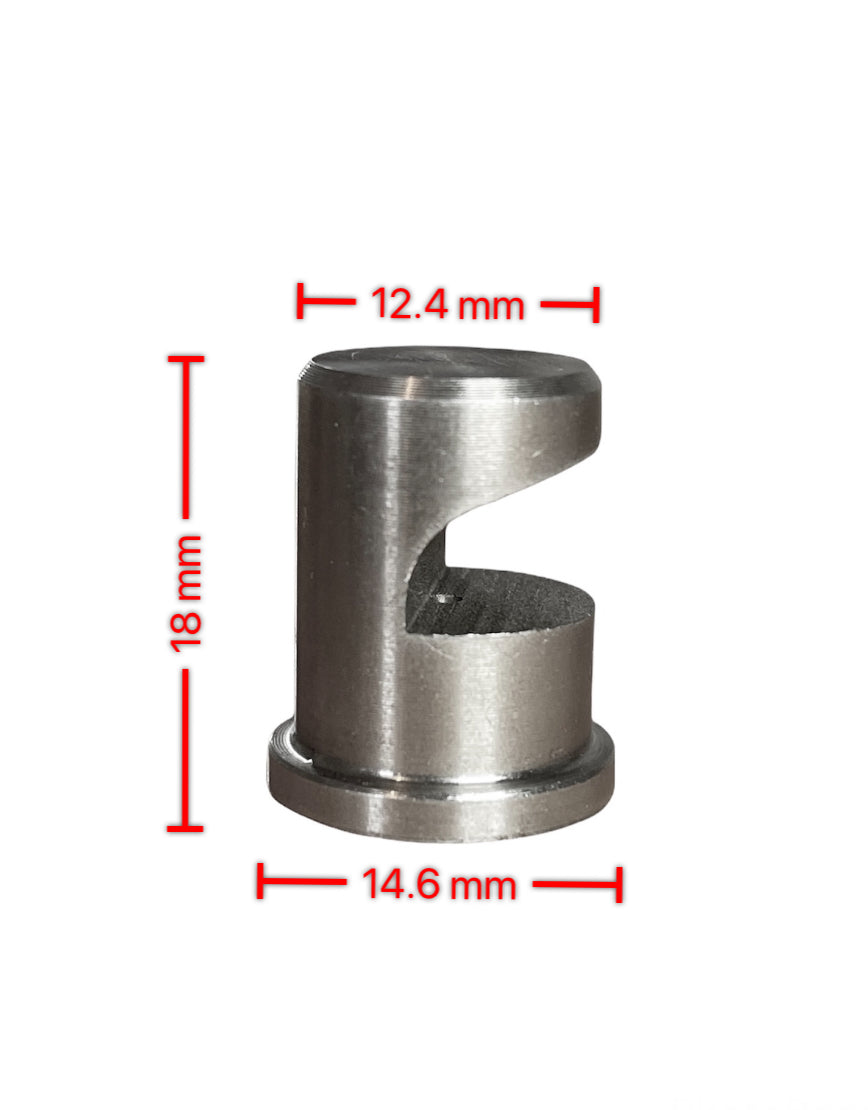

NOZZLE SIZE Base diameter = 14.5mm, Hight = 18mm, Top
diameter = 12.5mm.

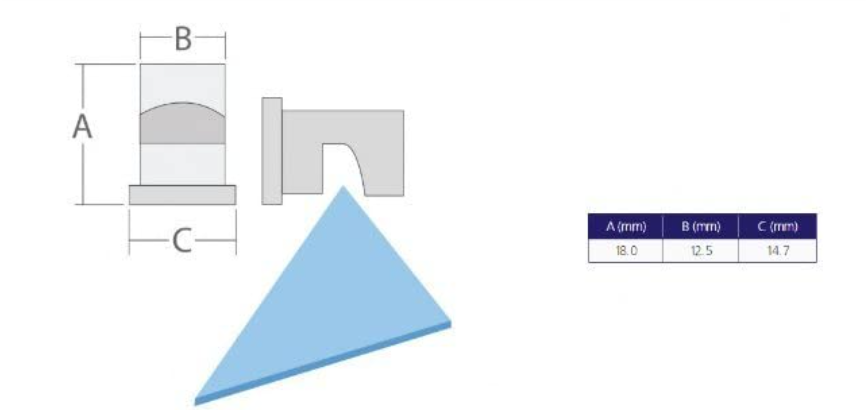

Spray angle shown in photo chart. Any questions feel free to ask.
